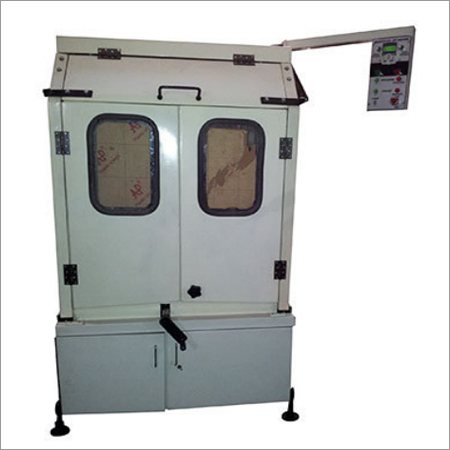

Metallurgical Cutting Machine

Metallurgical Cutting Machine
Metallurgical Cutting Machine
Product Code : ACO-200
Brand Name : DELHI METCO
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Box/Boxes
  • Price Range
  • 20000 - 500000 INR
Product Description

Metallurgical Cutting Machine

Model No.- ACO-200

Our expertise enables us to manufacture, export and supply a broad range of Cutting Machine that is equipped with magnetic separator which is best suited for quick and clean cutting of metallographic specimen from rods & tubes etc. Also, its cooling system helps to prevent burning structure of specimen due to over heating during the cutting motion. Under the proper direction of our adroit professionals, it is manufactured by making use of quality approved raw material and modern technology. Furthermore, this Cutting Machine can be purchased from us at industry leading price.

Features:

  • Hassle-free functionality
  • Operational fluency
  • Excellent performance
  • Robustness

METALLURGICAL SPECIMEN CUTT OFF MACHINE

The machine shell have a M.S steel base plate and cast iron table for job placement. The machine should have a totally enclosed Cutting Head Assembly. The Feed of the cutting wheel shell be vertical, Manual and through a Balanced handle assembly. Abrasive cutter is rugged, sturdy and designed to cut Metallurgical Samples to optimal quality consistently and safely. Metallography cutting machine ,Cutting Wheel spindle is connected with motor shaft by pulley and belt mechanism. The machine will be equipped with a pneumatic clamping arrangement for job on both side of the Cutting Disc. The abrasive cutting disc will be double Re-In forced. There will be a transparent Sheet provided in front of the machine to help the operator to see the cutting action. The machine stand will be machined to match the base plate with provision for counter balancing system and for rigidity. The rocking arm will be made of cast iron and provide on two no.of frictionless bearings, Machined to match the motor base plate and housing. The machine should have a Centralized control system for electrical Connections.

Specifications:

  • Heavy duty Sectioning Machine for Large Cross Sections, Irregular Components.
  • The built in cooling system can help to prevent burning structure of specimen due to over heating during the cutting motion, reciprocating swinging helps to cut fast and smooth cutting to improve the quality of prepared Specimens.
  • This Machine can operated manually or with Nut provided on handle pinion.
  • This is recommended for cutting large cross sections to get mostly UN-burn samples.
  • Motor :- Bharat Bijli make 15 hp 3 ph 440 V.
  • Extra Large Coolant Tank Mounted on wheels.
  • Cutting Capacity Solid 150mm.
  • Maximum Cutting Depth 185mm. (For Hollow)
  • Abrasive Cutting Wheel diameter 500 mm.
  • Motorized Magnetic based Coolant filtering system.
  • Heavy Large Bed 500 x 500 mm for Job Holding.

Special Feature:

Magnetic separator for separate coolant and dust particles



Trade Information
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Sample Available
  • Yes
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • Packing In Box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • MSME,ISO
