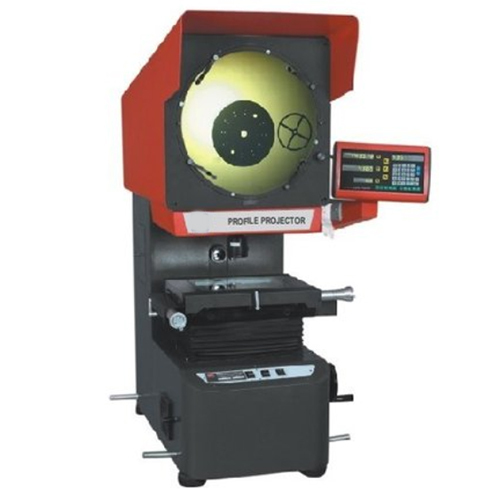

Profile Projector With DRO 16
This is an efficient optical measuring instrument, which is easy to operate and suitable for measuring different shapes of work-pieces with complicated profiles and surfaces. Such as punched pieces, gears, cams, thread cutters, templates etc by means of profile compare measure.
Therefore, this instrument is widely used in different machine and instrument manufacturing industries, and it is indispensable for inspection departments and workshops of relative factories.
Technical Specifications
Model | DM-16AZ |
Screen Size (Dia.) | 400mm |
Magnification | 10x (Standard) or 20x or 50x or 100x |
Rotating range | 0-360o |
Resolution | Liner: 0.001mm, Angular: 1 sec |
Measuring system | Digital Data processor (optical PC based software) |
X, Y coordinate accuracy | (3+L/100)u m |
Cross Travel Stage | Table size 420x250mm |
Focusing Travel | Z coordinate 90mm |
Illumination | Contour Illumination: 12V 100W |
| Surface Illumination: 24V 150W |
Dimensions/Weight | 550x800x1250mm/150 Kgs. |
![]() |
